QL40-SGR
from Mt Sopris
The QL40-SGR probe utilizes full gamma ray spectra to measure nuclide concentrations, offering precise gamma radiation counts.
The data is displayed as a spectrum with peaks and troughs, which can be processed in real-time with WellCad logging software.
It accurately measures gamma counts within lithological units, particularly useful in cross borehole geometries. Ideal for environmental, geological, and mining studies, the SGR helps assess structural weaknesses, mineral content, and clay presence in subsurface lithologies.
The probe is compatible with 4 to 7 coax cables and operates in various environments.
Features
- Adaptable probe suitable for a variety of applications and environments.
- User-friendly system for fast, reliable data acquisition, easily processed with WellCAD spectral software and Medusa Calibration proton recoil detector.
- Compatible with Uranium Calibration from Grand Junction ([13-100-055]) for specialized applications.
Operating Conditions
W - Water √
M - Mud √
D- Dry √

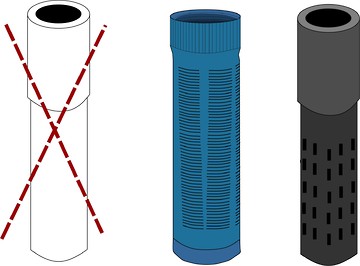

S - Steel √
P - PVC Borehole √
UC- Uncased √
*Centralization is not required
Product Dimensions
| Physical | Dimensions (L x W x H) | Weight |
|---|---|---|
| QL40-SGR (instrument only) | 0.39 m x 40 mm (diameter) x | 6 kg |
Technical Specifications
| Optimal Operating Temperatures (°C): | 0-70°C |
|---|---|
| Maximum Operating Pressure (bar): | 200 bar or 2900 psi |
| Measurement Range: | 3 MeV |
| Sensor Type: | Na(Ti) crystal, BGO Scintillation Crystal (1" x 4" inches) |
| Calibration: | Medusa spectra calibration (conc. radioisotopes in Bq/kg or ppm) |
| Spectral Range: | 256 Channels |
Data Sheet
- QL40-SGR Datasheet (PDF)
