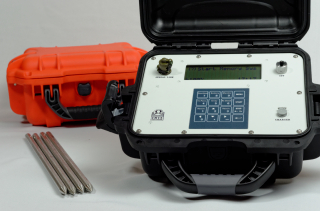

V&IFullwaver
from Iris Instruments
The I & V Fullwaver systems were specifically developed for precise full waveform time domain Induced Polarisation, Resistivity and SP measurements. Both systems are fully independent; incorporating their own power source, GPS module and digital memory for up to 8 hours continuous recording.
I Fullwaver: The I Fullwaver sits in series between the injection electrode and transmitter recording the AB injection current to within 3mA. Sampling at up to 100Hz the GPS PPS is used to synchronise an internal clock in order to accurately time stamps each record to within an absolute accuracy of 250us. The I Fullwaver can be used alongside the V Fullwaver for Elrec Induced polarisation receivers.
The V Fullwaver: The V Fullwaver is a dual channel Induced Polarisation, Resistivity and SP receiver. Continually recording at 10ms sample rate provides a full waveform record.
Applications;
- Mineral Exploration
- Environmental Monitoring
- Hydrology
Product Dimensions
| Physical | Dimensions (L x W x H) | Weight |
|---|---|---|
| V&IFullwaver (instrument only) | 31cm x 25cm x 15cm (each) | 2.8kg (each) |
Technical Specifications
| I FullWaver: | |
|---|---|
| Current range: | +/- 25 000mA |
| Current resolution: | 0.4mA |
| Accuracy: | +/- 3 mA |
| Protection:: | Up to 50A and 3000V |
| Sampling rate: | 10ms (100Hz) |
| Time resolution: | 250 us |
| Memory: | More than 2 860 000 samples. Up to 8 hours continuous recording. |
| Power supply: | Li-Ion rechargeable battery. Optional external 12V battery. |
| Operating temperature: | -20ºC to + 70ºC |
| V Fullwaver: | |
| Max Input Voltage: | 15V |
| Protection: | 1000V |
| Accuracy: | 0.2% |
| Resolution: | 10µV |
| Sampling rate: | 10ms (100Hz) |
| Low pass filter cut off frequency: | 10Hz |
| Upper frequency which can be resolved: | 50Hz |
| Frequency resolution: | 32uHz |
| Time resolution: | 250us |
| Memory: | More than 2 860 000 samples. Up to 8 hours continuous recording. |
| Power supply: | Li-Ion rechargeable battery. Optional external 12V battery. |
| Operating temperature: | -20ºC to + 70ºC |
Shipping
| Contents | Dimensions (L x W x H) | Weight |
|---|---|---|
|
Case 1
1 set of I&IFullWaver, cables & electrodes |
72cm x 49cm x 40cm | 60kg |
|
Case 2
VIP3000 Transmitter |
40cm x 48cm x 75cm | 34kg |
Shipping Notes:
No Li-ion Battery
