G-862RBS Base Station
from Geometrics
The high performance of the G-862 and its multi-function capabilities are well suited for many mobile survey applications and also for applications that require stationary monitoring of the total magnetic field. In addition to providing magnetic field measurements, the electronic circuits included in the G-862 provide the ability to concatenate its measurement data with the output of other RS-232 serial devices. This feature permits the G-862 to be integrated with other digital devices and to merge this combined data into a single digital stream for efficient transmission and storage.
Because the G-862RBS’s measurements are time stamped, and GPS synchronised, they are automatically synchronized with a similarly configured magnetometer system – whether it is stationary or mobile. The precise, synchronous records obtained from a mobile magnetic survey system and a stationary G-862RBS will permit the recognition and removal of both the diurnal variation of the Earths field as well as higher frequency magnetic signal due to spherics.
Because the G-862RBS’s measurements are time stamped, and GPS synchronised, they are automatically synchronised with a similarly configured magnetometer system – whether it is stationary or mobile. The precise, synchronous records obtained from a mobile magnetic survey system and a stationary G-862RBS will permit the recognition and removal of both the diurnal variation of the Earths field as well as higher frequency magnetic signal due to spherics.

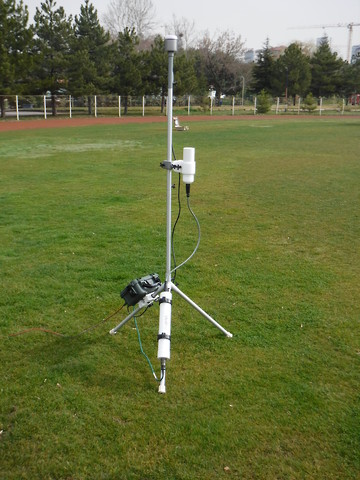

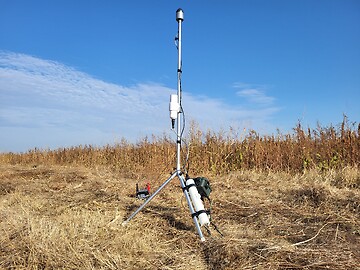

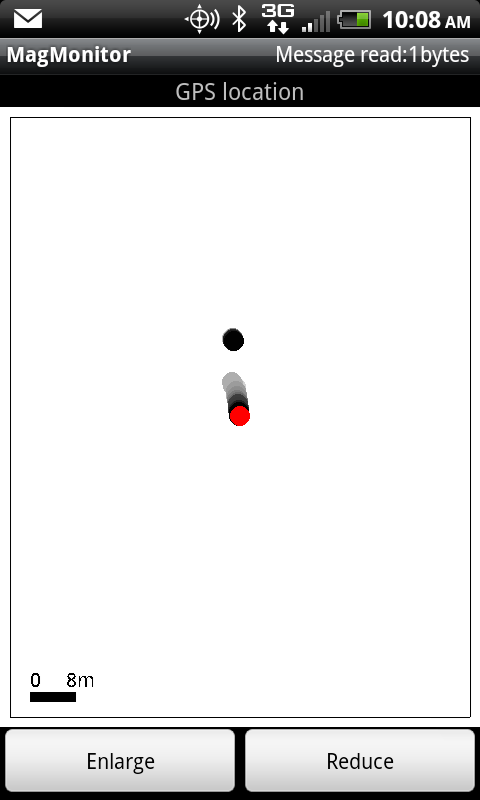

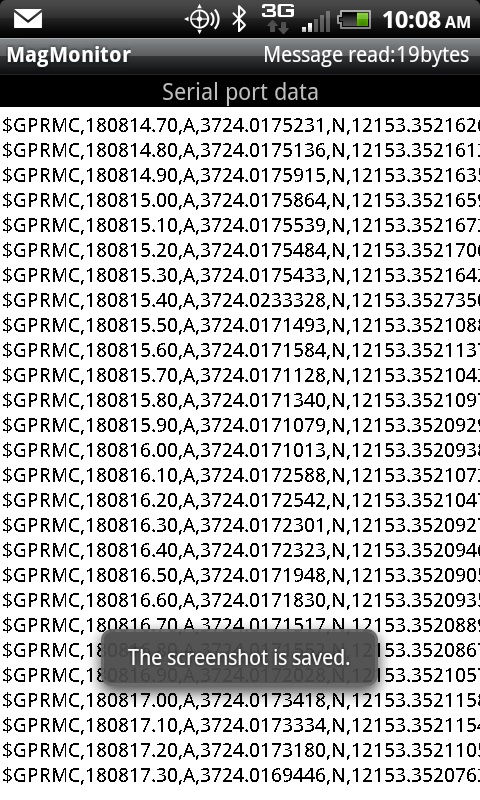

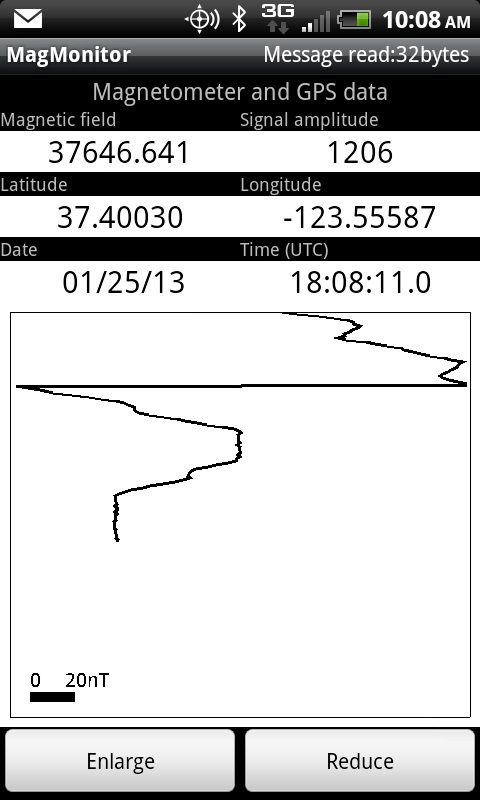

Magnetic measurements can be monitored in real-time using the MagMonitor Android app and a mobile phone or tablet. Data is transferred via Bluetooth at a range of up to 20m in order that an operator can monitor the status of the base station without influencing the measurements.
Product Dimensions
| Physical | Dimensions (L x W x H) | Weight |
|---|---|---|
| G-862RBS Base Station (instrument only) | 75cm x 75cm x 180cm | 12.7kg |
Technical Specifications
| Sensor: | Self-oscillating split-beam Cesium Vapor (non-radioactive). |
|---|---|
| Operating Range: | 20,000 to 100,000nT. |
| Sensitivity: | < 0.004 nT/Hz rms. Typically 0.02 nT P-P at a 0.1 second sample rate. |
| Absolute Accuracy: | < 3 nT throughout range |
| GPS receiver: | Time accuracy; 20ns, RMS, max. data rate; 1 Hz. |
| Data Logger: | Serial logger, removable military grade USB memory stick. |
| Data Format: | ASCII, MS Windows PC compatible, FAT16 file format. |
| Capacity: | 21 days using 1 Gb USB memory stick while recording at 10 Hz rate with GPS receiver output set to provide GPRMC data sentence. |
| Operating Temperature: | -35 C to +50 C. |
| Storage Temperature: | -45 C to +70 C |
| Altitude:: | 9,000m |
| Weatherproof: | O-Ring sealed for operation in the rain and/or 100% humidity. |
| Power: | 10 to 36 VDC, 30 Watt. or 110-220VAC (50-60hz). |
| Communication: | USB, Serial or Bluetooth |
