D230A UAV Gamma Ray Spectrometer
from Terraplus

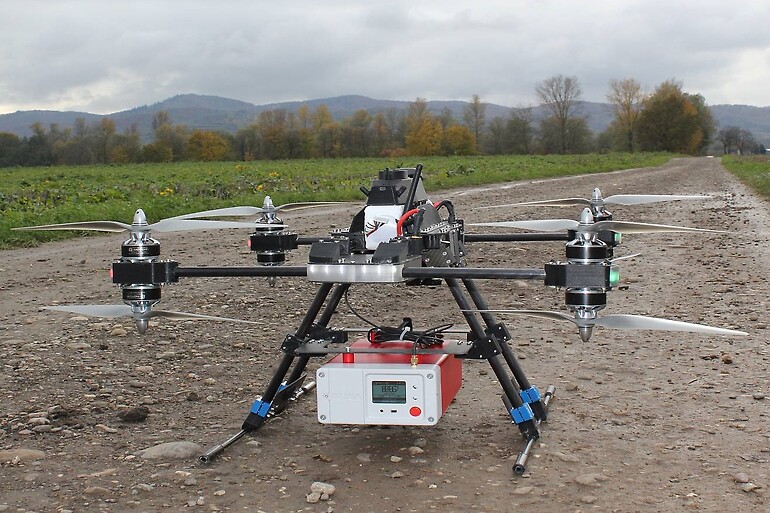

The D230A is a compact lightweight self-contained gamma ray spectrometer for UAV integration. Designed with exploration in mind the D230A can be used to measure the total gamma ray intensity across landscapes for geological mapping.

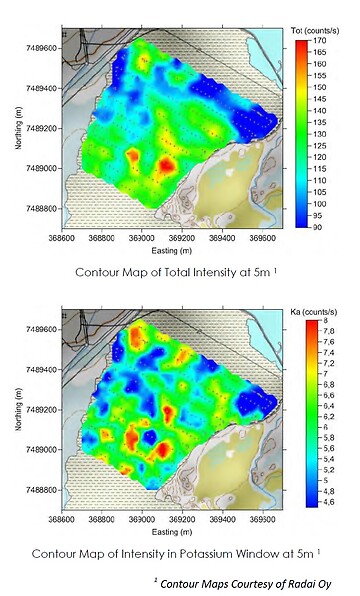

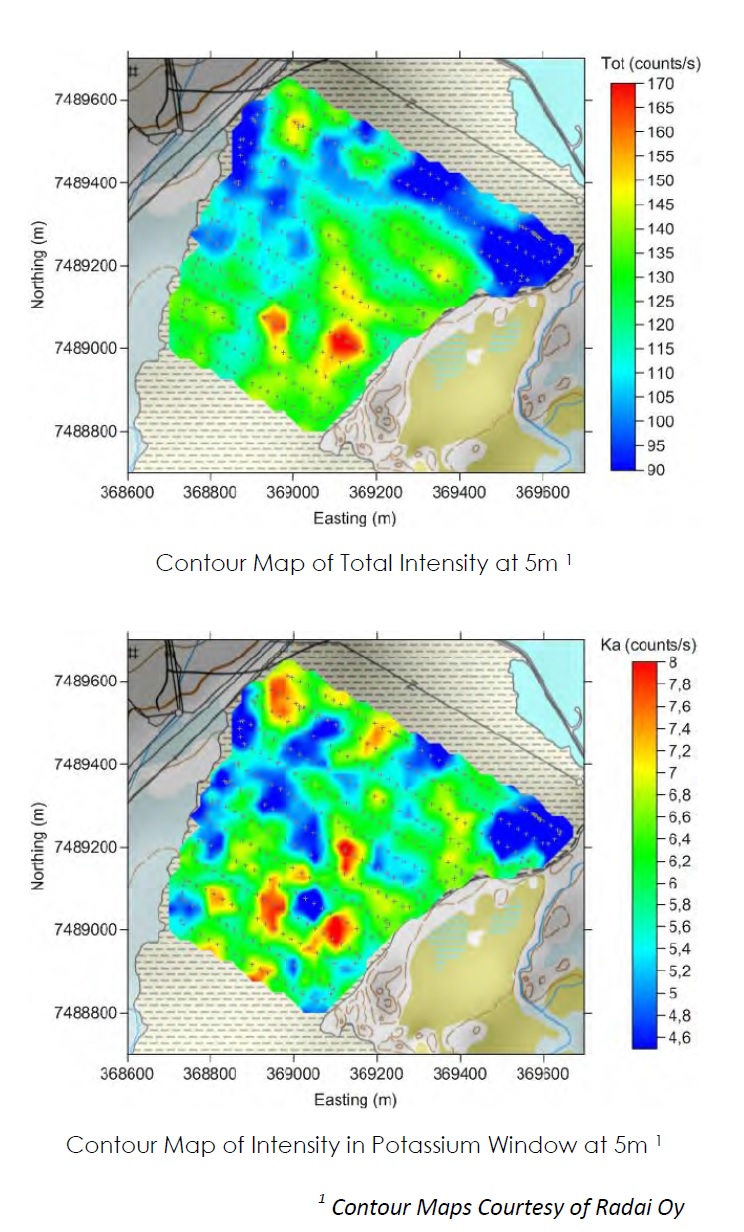

The D230A can can be supplied with a variety of Bismuth Germanate (BGO) or Sodium Iodide (NaI) detector volumes to meet the requirements of the user. The detector volume is customisable depending on the payload capacity of the UAV. Options include 51x51 mm, 51x76.5 mm, or 51x102 mm detector sizes available with volumes of 104 cm3, 156 cm3, or 208 cm3, respectively. Larger detector volumes results in higher gamma interactions contributing directly to measurement fidelity, and also provides additional flexibility when planning a survey. An inverse relationship exists between the number of Gamma ray interactions recorded and distance from the gamma source therefore an initial pass at a greater height/speed can be completed in order to quickly identify areas of interest using the total count/dose rate data. Then, in order to gather better spectra in these areas of interest, a second pass at a lower height/speed can be preformed to optimise the survey time. Depending on the underlying geological formation, it is sometimes feasible to acquire count/does rate data from an altitude of around 30m and then follow up with a focused spectra survey at an altitude of round 3-5m.

The D230A samples at a rate of 1 measurement per second and, for each measurement, the system records 1024 channels of spectra. Spectra are recorded separately for each detector and an accumulated spectra is also generated, which is the sum of the spectra from all detectors. The dose rate is computed from the sum of spectra. Given that the output from each individual detector is available, users have full freedom to perform different evaluation methods on the data during post-processing.

The optional telemetric module allows for the real-time transmission of data, including spectra, dose rate, elevation, atmospheric pressure, and GPS position. The D230A also records data onto an internal 32 GB SD card with a standard storage capacity of 40,000 full spectra samples. The memory size is upgradeable to record additional records.
